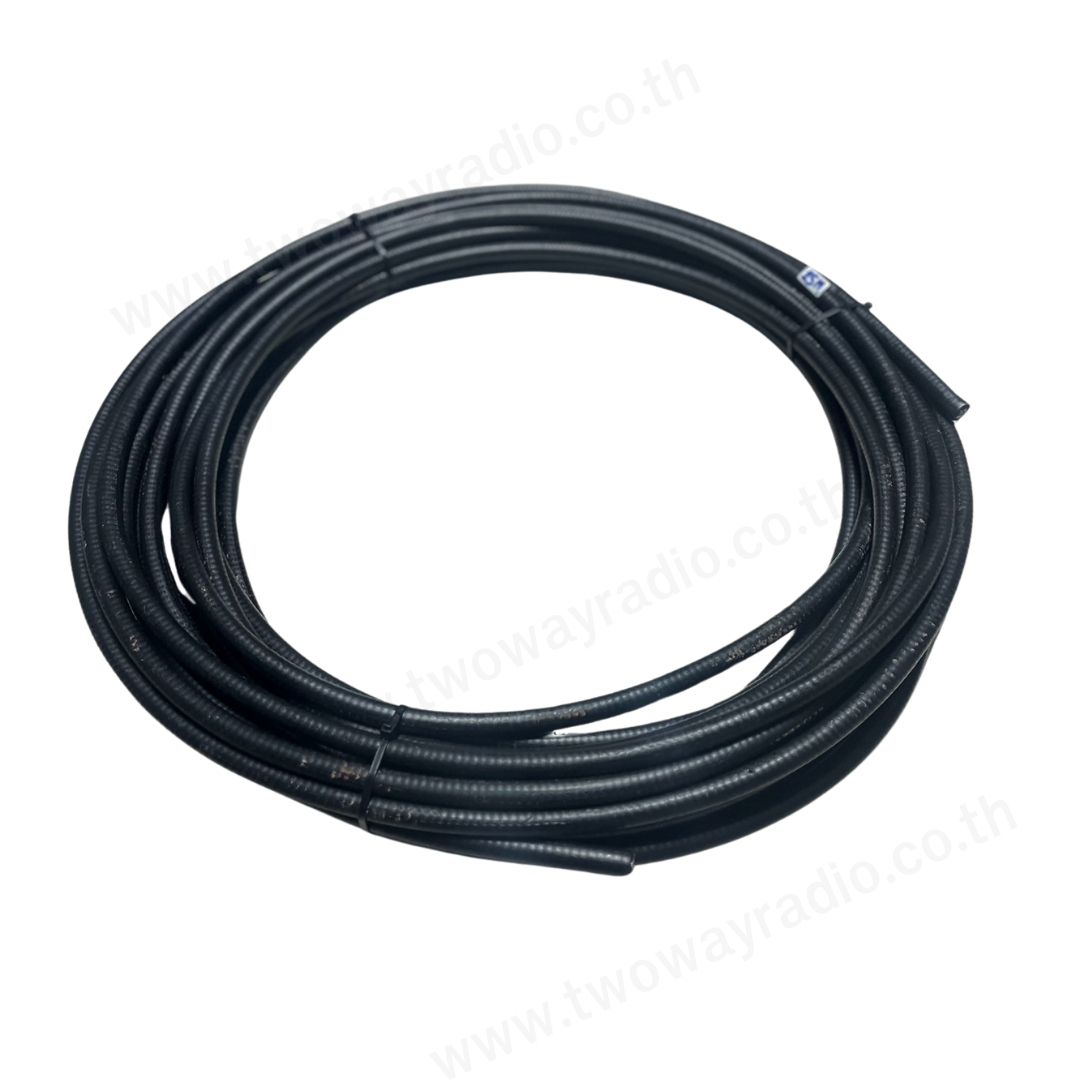

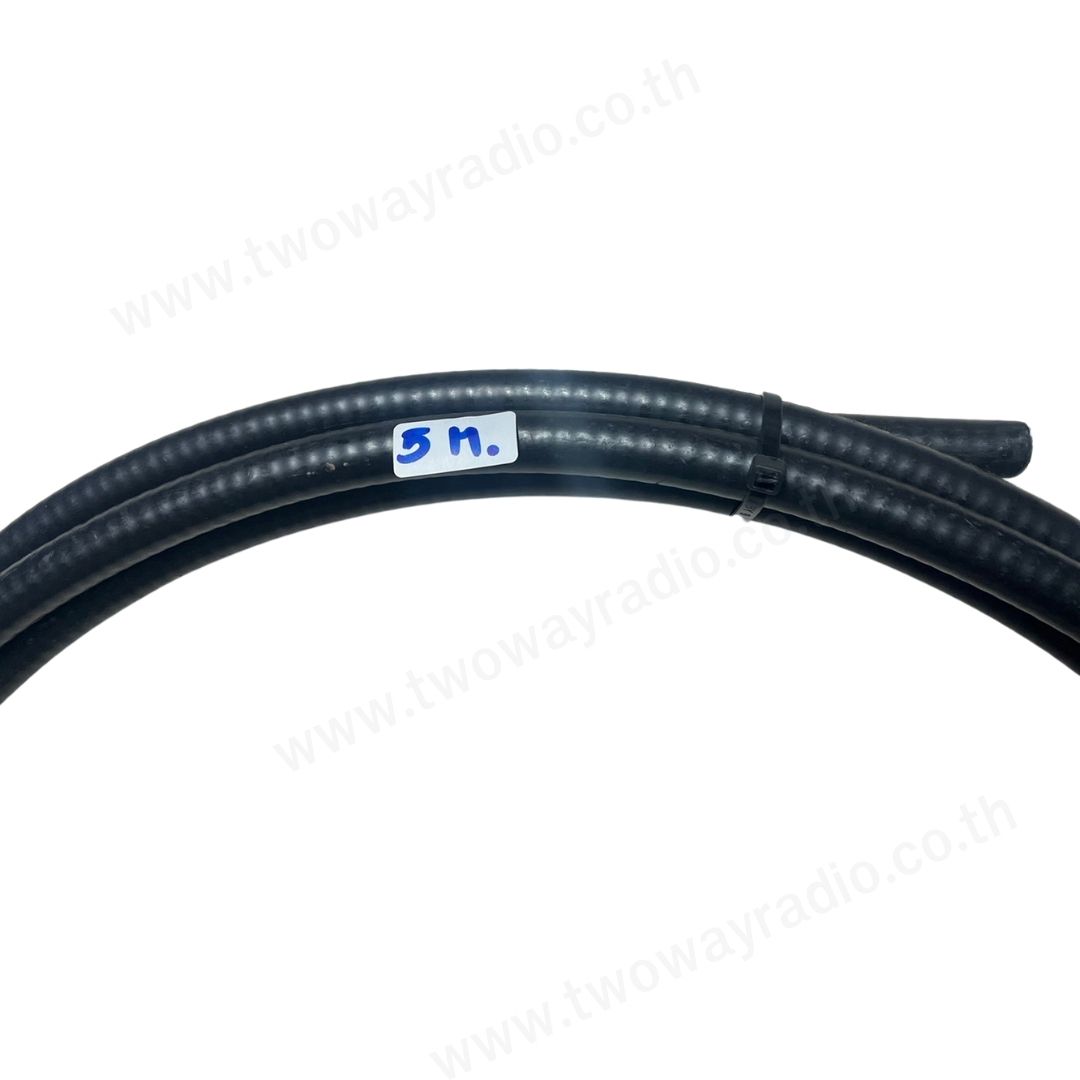

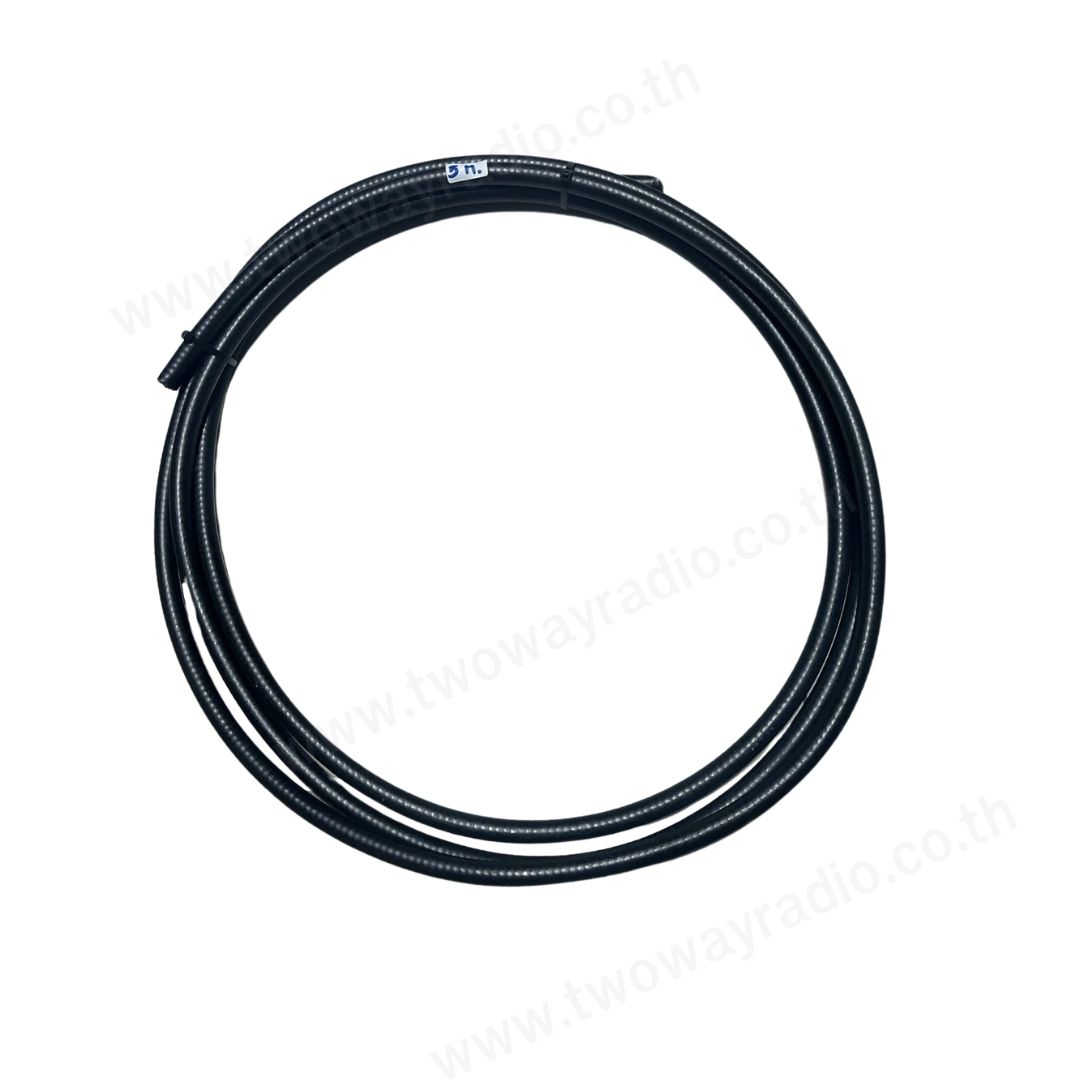

สายนำสัญญาณ ฮาริแอค 1/2 ยาว 5 เมตร (แบ่งขาย)
- Cable Type 1/2″ Foam
- Impedance (Ohms) 50 Ohms
- Maximum Frequency 8.8 Ghz
- Velocity 88%
- Peak Power (W) 40 kW
- DC Breakdown Voltage 4000
- DC Resistance (ctr/shld) Ohms 1.45/0.58
- Capacitance 23.1 pF/ft
- Inductance 0.058 uH/ft
- Construction Specification
- Inner Conductor Copper-Clad Aluminum 4.8 mm.
- Dielectric Physical From Polyethylene 12.3 mm.
- Outer Conductor Copper 13.8 mm.
- Jacket Black PE 15.7 mm.
